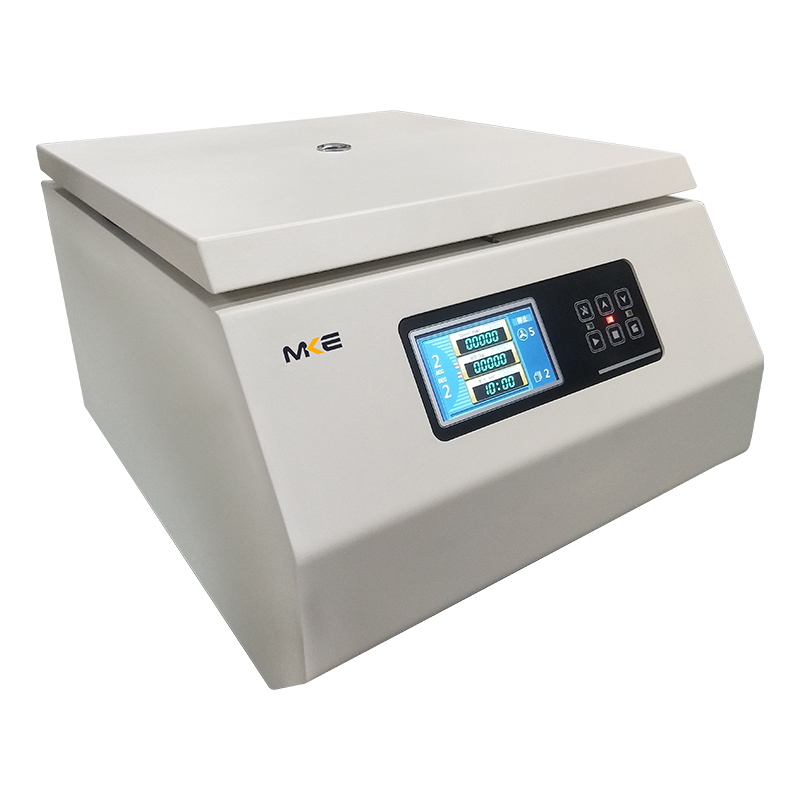

Low Speed Blood Centrifuge Machine for Blood Collecting Tubes
| Applications: | Hospitals,Veterinary clinics,Food labs,Universities & colleges, Pharmaceutical labs, Cell culture labs,Infant stations |
| Max.Speed | 6000rpm |
| Max.RCF | 4588xg |
| Max.Capacity | 4*600ml swing out rotor |
| Matched Rotors | Fixed angle rotor; Swing out buckets rotor |
| Display | LCD |
| Model Number: | KC-550B |
| Certification: | CE, ISO13485,ISO9001, SFDA |
| Warranty | 1 year warranty for the whole machine, 3 years warranty for the compressor and 5 years warranty for the motor. Free replacement parts and shipping within warranty. |
- Description
- Video
- Technical Specifications
- Rotors and Accessories
- Competitive Advantage

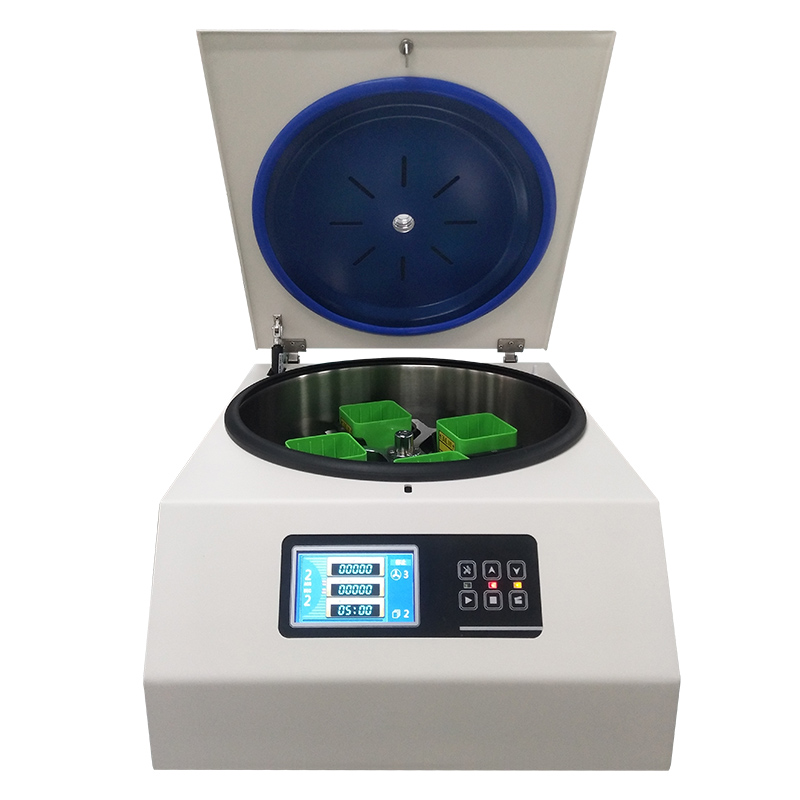

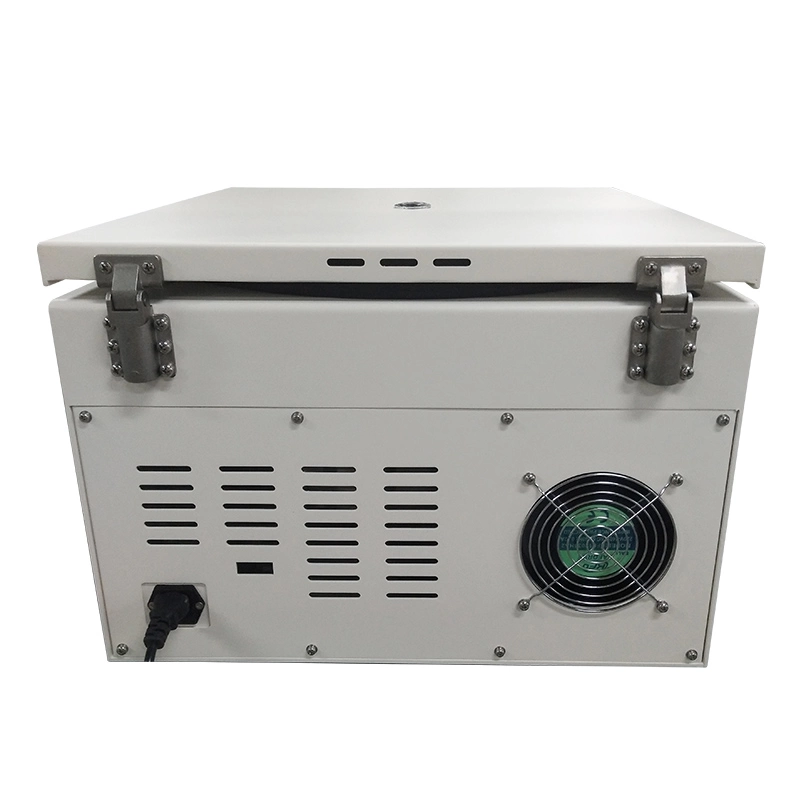

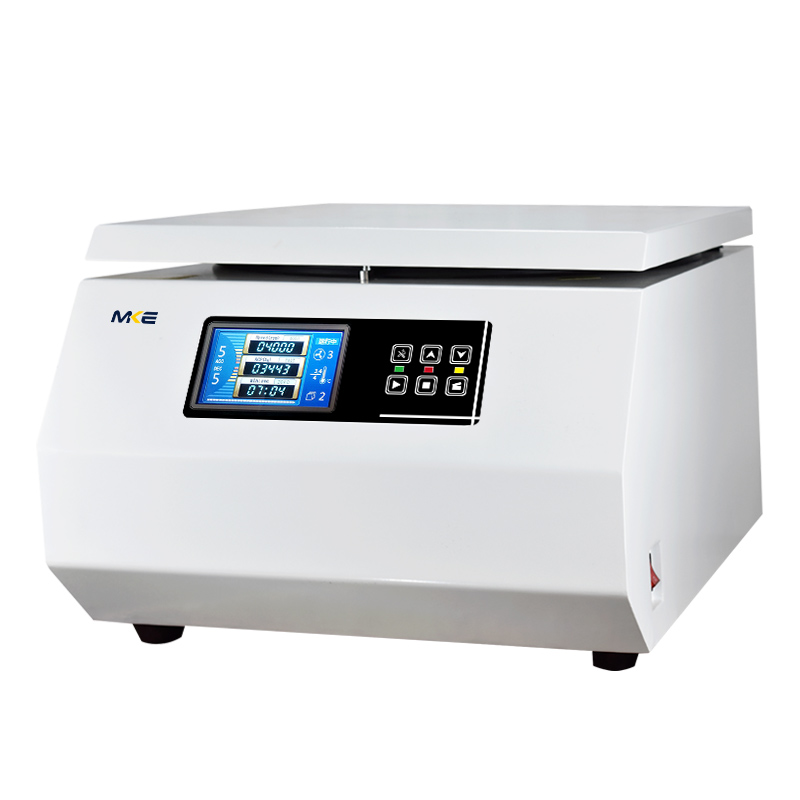

The benchtop centrifuge KC-550B can accommodate the blood collection tubes of height 100 mm and 76 mm with auto decapping adapter, which improves the work efficiency.
An automatic cap-opening centrifuge is a type of centrifuge that features an automatic lid-opening function, which allows for easy loading and unloading of centrifuge tubes. This type of centrifuge is commonly used for sample separation and purification in applications such as biochemistry, molecular biology, medicine, and other laboratory settings. It is characterized by its ease of use, efficiency, and safety, which can save time and effort for laboratory personnel, while also avoiding contamination and errors that can occur with manual operation.
Design

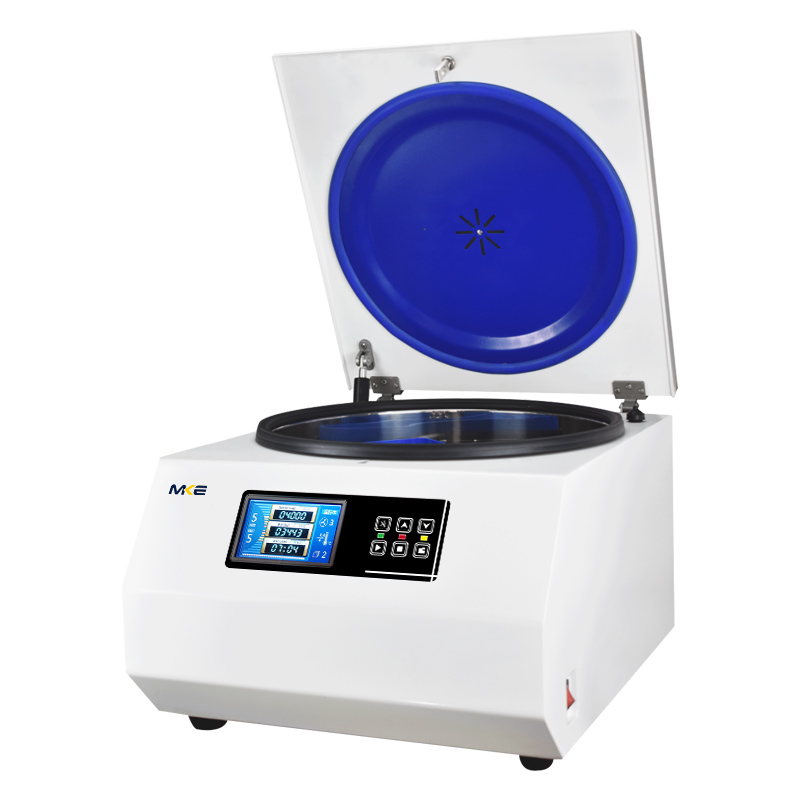

● Metal housing, metal lid, and 304# stainless steel centrifuge chamber are autoclave-able and resistant detergents and disinfection liquids.
● Observations window on lid for speed calibration and noise measurement.
● Microprocessor control with frequency conversion A.C. motor drive.

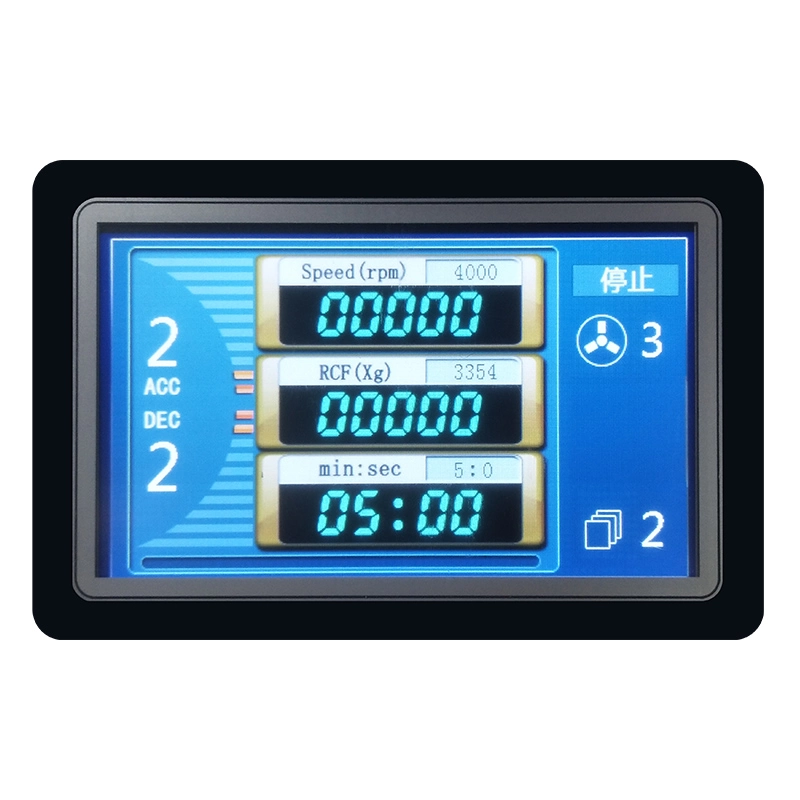

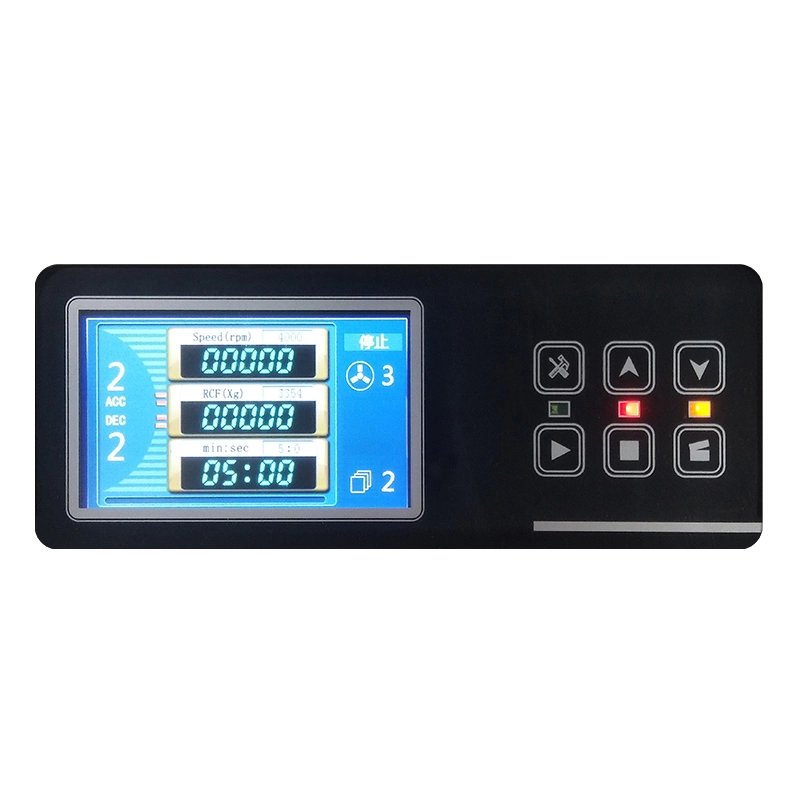

● LCD touch screen with simple&clear interface for viewing and setting parameters.
● Double layers sealing ring made for the centrifuge lid and the instrument to keep long good sealing.
User friendly
● Programmable and storable, stores up to 30 programs and provides direct user access with one keystroke save. The stored parameter: combination remains in the memory even after the centrifugation has been switched off.
● Provides the 10 acceleration rates and 10 braking ramp, to effectively avoid secondary sedimentation, with better centrifugation effect.
● Automatic lid-locking and holding during rotor run.
● Easily exchangeable rotors. Auto decapping adapter is available.
● Automatic troubleshooting with indication of error code and alarm on the screen.
● “Mute”patent technology. Noise level lower than 58 decibel at the highest rotational speed.
Safety
● Produced according to international safety regulations (e.g. IEC 61010)
● Safety Electrical lid interlock,door can not open when rotor is running and machine won’t run when lid open and error code appears.
● Emergency lid-lock release when power failure.
● Gas hinge for lid drop protection.
● Safety protections are made for the over speed, imbalance etc to ensure the man machine safety.
| Speed range(rpm) | 0-6000rpm adjustable | Speed accuracy | ±10rpm |
| Max Capacity(ml) | 4*600ml | RCF range (xg) | 0-4588xg adjustable |
| Display | LCD | Time range | 0-99minutes |
| Noise(dBA) | ≦58dB(A) | Acceleration /Deceleration rates | 0-- 9 |
| Dimension(mm) | 620x480x375mm | Motor | Frequency Converter motor |
| Net weight(without rotor) | 50KGS | Power supply | AC220V,50HZ,10A,770W |

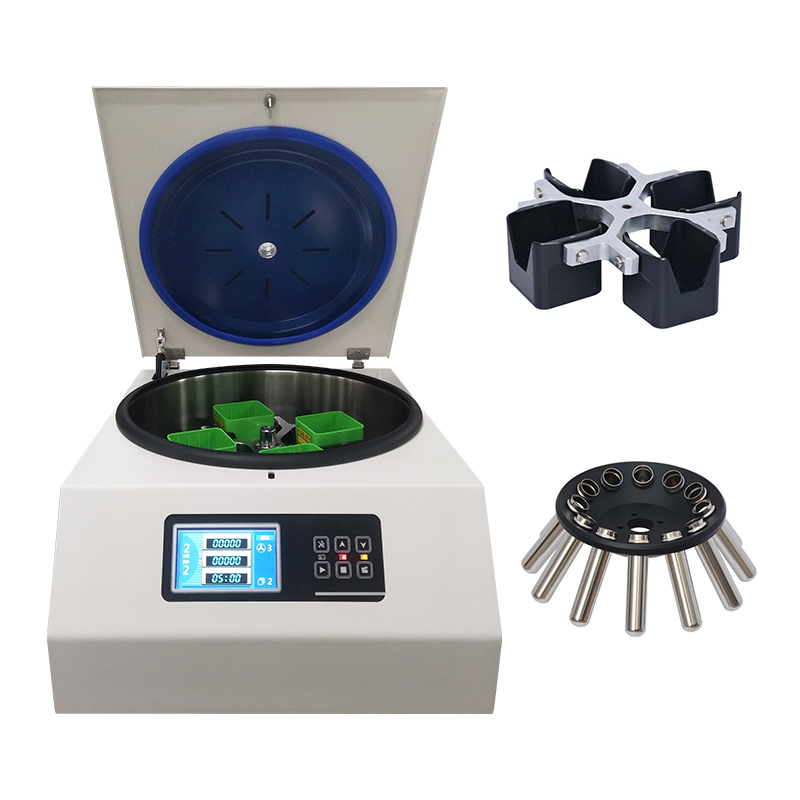

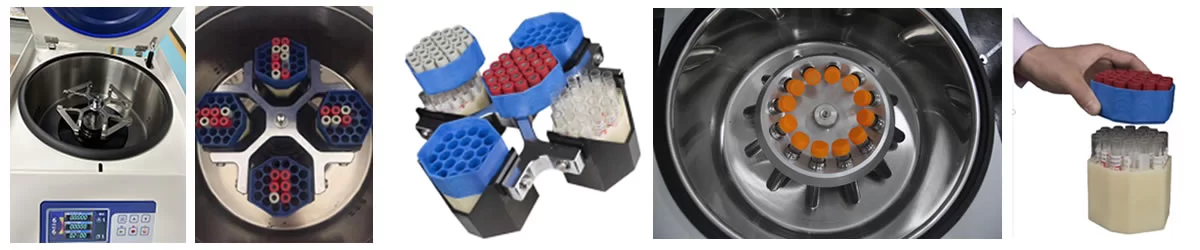

| No. | Item | Capacity | Max.speed | Max.RCF | Note |
NO.1 | Angle rotor | 12×15-10-5ml | 6000r/min | 4588xg | PP/PC tube |
| Adapter | 12 x 2 ml | ||||

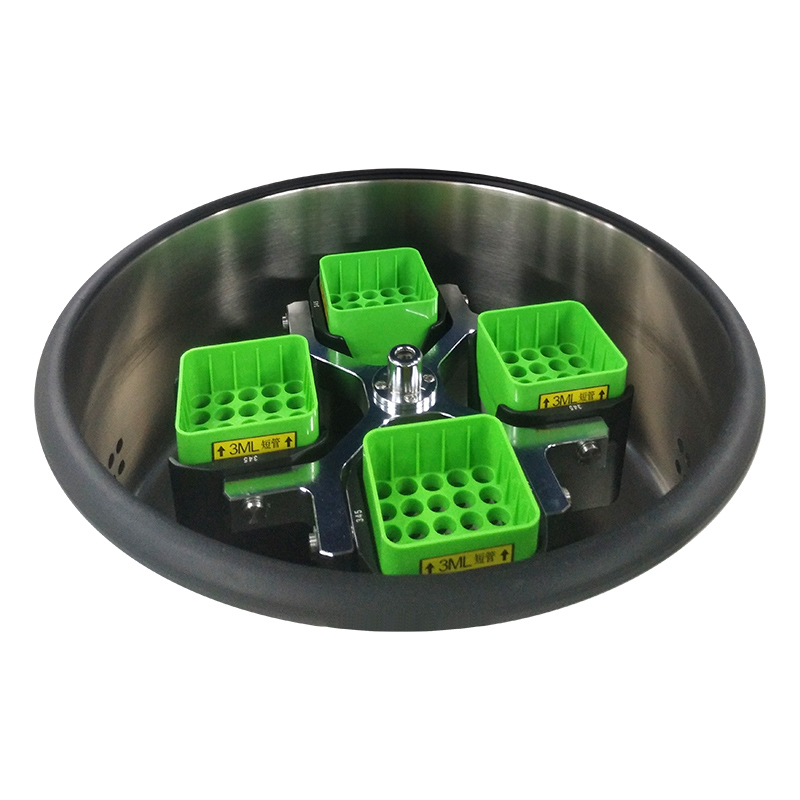

NO.2 | Swing bucket | 4 x 500 ml | 4000r/min | 3354xg | Square bucket |
| Decapping adapter | 4×20x2-5ml | ||||
| Adapter | 4×12x10-15ml | ||||
| Adapter | 4x4x50 ml | ||||
| Adapter | 4×2x100ml | ||||
NO.3 | Swing bucket | 4x 600 ml | 4000r/min | 3354xg | Square bucket |
| Adapter | 4×25×2-5 ml | ||||
| Adapter | 4×12×10-15 ml | ||||
| Adapter | 4x5x50 ml | ||||
| Adapter | 4×4x100 ml | ||||
 | |||||
1. Professional centrifuge manufacturer, competitive price.
2. ISO9001, ISO13485, CE, SFDA Certification, all machines undergo strict quality testing and good packaging before transportation.
3. Long-term technical support and professional customer service at every stage of the product sales, delivery and operation.Our highly qualified and experienced service team providing you with a unique level of support for your purchase for it's entire lifetime.
4. We can also offer customized solutions for clients' special requirements.
5. Powered with an efficient team of engineers backed by years of experience in their respective fields, the company ensures each and every product that leaves the manufacturing unit is up to the mark in all respects.
